Twitter Timeline Example

Files:

Description

The Twitter Timeline example demonstrates how to access a RESTful service that responds with JSON data and then display the results on the screen.

Overview

In this example we'll learn how to use the QNetworkAccessManager and JsonDataAccess classes to download tweets from the RESTful webservice and parse them into a model to visualize them in a ListView.

The business logic of this application is encapsulated in the App class, which is exported to QML under the name '_timeline'.

UI

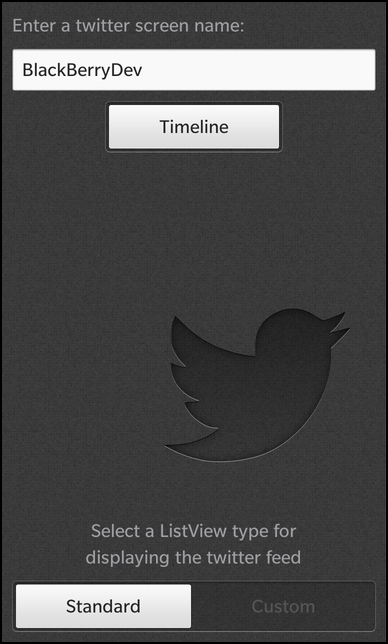

The UI of this sample consists of a TextField to enter the screen name and a Button to start the lookup for tweets with the given screen name. Whenever the user clicks the button, the requestTweets() method of the App object is invoked. The button is disabled while the lookup is in progress.

    TextField {
        id: screenName
        text: "BlackBerryDev"
    }

    Button {
        horizontalAlignment: HorizontalAlignment.Center

        enabled: !_timeline.active

        text: qsTr("Timeline")
        onClicked: {
            _timeline.requestTweets(screenName.text);
        }
    }

If an error occurs during the lookup, the 'error' property of the App object becomes 'true', which makes the Label below the button visible. It will show the error message as provided by the App object.

    Label {
        verticalAlignment: VerticalAlignment.Center

        visible: _timeline.error

        multiline: true

        text: _timeline.errorMessage
        textStyle {
            base: SystemDefaults.TextStyles.BigText;
            color: Color.Gray
        }
    }

If the lookup is successful, the App object emits the tweetsLoaded() signal. After the UI is initialized, we connect the pushPane() function against this signal.

    function pushPane()
    {
        navigationPane.push(viewTypes.selectedValue.createObject())
    }

    onCreationCompleted: _timeline.tweetsLoaded.connect(pushPane)

The pushPane() function will push a page, that shows the tweets in a ListView, on the navigation pane. Since we want to have two different visual representations of the list, we have two different pages. One uses the standard list item component and the other uses a custom list item component.

    attachedObjects: [
        ComponentDefinition {
            id: standardViewPage
            source: "StandardTimelineView.qml"
        },
        ComponentDefinition {
            id: customViewPage
            source: "CustomTimelineView.qml"
        }
    ]

Both pages are loaded through ComponentDefinitions and the user can select which one is used through a SegmentedControl at the bottom of the screen.

    SegmentedControl {
        id: viewTypes

        Option {
            id: basicView
            text: qsTr("Standard")
            value: standardViewPage
            selected: true
        }

        Option {
            id: richView
            text: qsTr("Custom")
            value: customViewPage
        }
    }

The standard appearance is implemented in StandardTimelineView.qml and uses the StandardListItem as ListItemComponent. As data model the ListView uses the model provided by the App object.

    ListView {
        dataModel: _timeline.model

        listItemComponents: [
            ListItemComponent {
                type: "item"
                StandardListItem {
                    status: ListItemData.created_at
                    description: ListItemData.text
                    imageSpaceReserved: false
                }
            }
        ]
    }

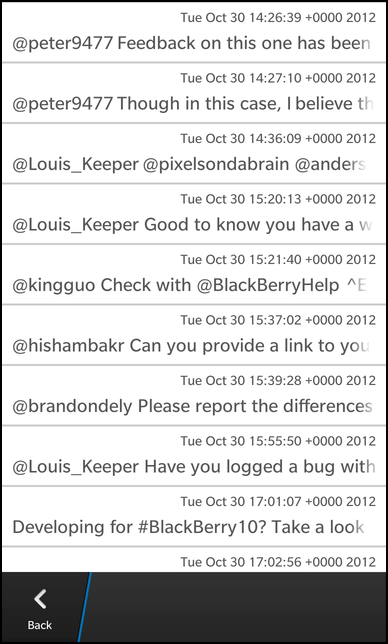

The page looks like the following:

The custom appearance is implemented in CustomTimelineView.qml and uses a custom control as ListItemComponent, consisting of two Labels below each other.

    ListView {
        dataModel: _timeline.model

        listItemComponents: [
            ListItemComponent {
                type: "item"

                Container {
                    id: itemRoot

                    preferredWidth: 768
                    preferredHeight: 200

                    layout: DockLayout {}

                    ImageView {
                        horizontalAlignment: HorizontalAlignment.Fill
                        verticalAlignment: VerticalAlignment.Fill

                        imageSource: itemRoot.ListItem.selected ? "asset:///images/item_background_selected.png" :
                                                                  "asset:///images/item_background.png"
                    }

                    Container {
                        horizontalAlignment: HorizontalAlignment.Center
                        leftPadding: 20
                        rightPadding: 20

                        Label {
                            horizontalAlignment: HorizontalAlignment.Center
                            verticalAlignment: VerticalAlignment.Center

                            text: ListItemData.created_at
                            textStyle {
                                base: SystemDefaults.TextStyles.BodyText
                                color: Color.Gray
                            }
                        }

                        Label {
                            preferredHeight: 200

                            text: ListItemData.text
                            textStyle {
                                base: SystemDefaults.TextStyles.SmallText
                                color: Color.Gray
                            }

                            multiline: true
                        }
                    }
                }
            }
        ]

        onTriggered: {
            clearSelection()
            select(indexPath)
        }
    }

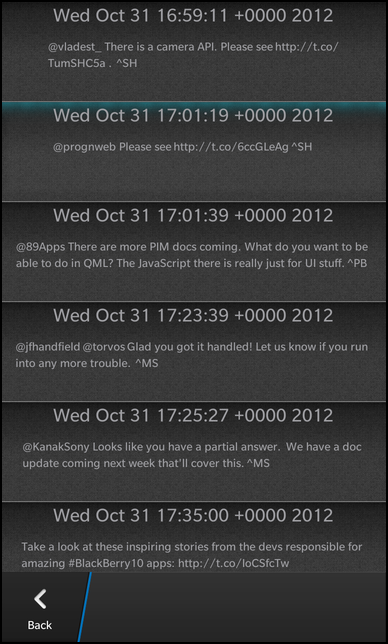

The page looks like the following:

The App class

The App class encapsulates the business logic of this application. It provides methods to trigger the lookup of tweets, a property of type bb::cascades::DataModel that contains the found tweets and further properties to report the current state of the object (e.g. error or in-progress).

    class App : public QObject
    {
        Q_OBJECT

        Q_PROPERTY(bool active READ active NOTIFY activeChanged)
        Q_PROPERTY(bool error READ error NOTIFY statusChanged)
        Q_PROPERTY(QString errorMessage READ errorMessage NOTIFY statusChanged)

        Q_PROPERTY(bb::cascades::DataModel* model READ model CONSTANT)

    public:
        App(QObject *parent = 0);

    public Q_SLOTS:
        /*
         * Called by the QML to get a twitter feed for the screen nane
         */
        void requestTweets(const QString &screenName);

        /*
         * Allows the QML to reset the state of the application
         */
        void reset();

    Q_SIGNALS:
        /*
         * This signal is emitted whenever the tweets have been loaded successfully
         */
        void tweetsLoaded();

        /*
         * The change notification signals of the properties
         */
        void activeChanged();
        void statusChanged();

    private Q_SLOTS:
        /*
         * Handles the complete signal from TwitterRequest when
         * the request is complete
         * @see TwitterRequest::complete()
         */
        void onTwitterTimeline(const QString &info, bool success);

    private:
        /*
         * Parses the JSON response from the twitter request
         */
        void parseResponse(const QString&);

        /*
         * The accessor methods of the properties
         */
        bool active() const;
        bool error() const;
        QString errorMessage() const;
        bb::cascades::DataModel* model() const;

    private:
        bool m_active;
        bool m_error;
        QString m_errorMessage;
        bb::cascades::GroupDataModel* m_model;
    };

Inside the constructor the model is initialized and the UI is loaded from main.qml file.

    App::App(QObject *parent)
        : QObject(parent)
        , m_active(false)
        , m_error(false)
        , m_model(new GroupDataModel(QStringList() << "id_str", this))
    {
        m_model->setGrouping(ItemGrouping::None);

        QmlDocument* qml = QmlDocument::create("asset:///main.qml").parent(this);
        qml->setContextProperty("_timeline", this);

        AbstractPane* root = qml->createRootObject<AbstractPane>();
        Application::instance()->setScene(root);
    }

Before a new request is issued, the reset() method is called, which clears any previous error information.

    void App::reset()
    {
        m_error = false;
        m_errorMessage.clear();

        emit statusChanged();
    }

When the user clicks the 'Timeline' button, the requestTweets() method is invoked with the screen name as parameter. If no lookup is currently running, we do a sanity check on the screen name and if everything is ok execute the lookup. The lookup on the network is encapsulated in a TwitterRequest object, which provides a signal complete() to notify us when the raw JSON data has been retrieved. We connect a custom slot against this signal and start the request. Afterwards we change the 'active' property of the App object to signal the UI that a lookup is in progress.

    void App::requestTweets(const QString &screenName)
    {
        if (m_active)
            return;

        // sanitize screenname
        const QStringList list = screenName.split(QRegExp("\\s+"), QString::SkipEmptyParts);
        if (list.isEmpty()) {
            m_errorMessage = "please enter a valid screen name";
            m_error = true;
            emit statusChanged();
            return;
        }

        const QString twitterId = (list.first().startsWith('@') ? list.first().mid(1) : list.first());

        TwitterRequest* request = new TwitterRequest(this);
        connect(request, SIGNAL(complete(QString, bool)), this, SLOT(onTwitterTimeline(QString, bool)));
        request->requestTimeline(twitterId);

        m_active = true;
        emit activeChanged();
    }

When the network lookup is finished, the onTwitterTimeline() slot is invoked. There we first check whether an error occurred. In case of an error we update the 'error' and 'errorMessage' property of the App object and inform the UI about the change. Otherwise we call the helper method parseResponse().

    void App::onTwitterTimeline(const QString &info, bool success)
    {
        TwitterRequest *request = qobject_cast<TwitterRequest*>(sender());

        if (success) {
            parseResponse(info);

            emit tweetsLoaded();
        } else {
            m_errorMessage = info;
            m_error = true;
            emit statusChanged();
        }

        m_active = false;
        emit activeChanged();

        request->deleteLater();
    }

The parseResponse() method uses the JsonDataAccess class to parse the raw JSON data into a list of QVariantMaps, which can be inserted directly into our model.

    void App::parseResponse(const QString &response)
    {
        m_model->clear();

        if (response.trimmed().isEmpty())
            return;

        // Parse the json response with JsonDataAccess
        JsonDataAccess dataAccess;
        const QVariant variant = dataAccess.loadFromBuffer(response);

        // The qvariant is an array of tweets which is extracted as a list
        const QVariantList feed = variant.toList();

        // For each object in the array, push the variantmap in its raw form
        // into the ListView
        foreach (const QVariant &tweet, feed) {
            m_model->insert(tweet.toMap());
        }
    }

The TwitterRequest class

The TwitterRequest class encapsulates the retrieval of data from the twitter webservice. It basically provides a method to trigger the lookup and a signal to notify when the lookup is finished.

    class TwitterRequest : public QObject
    {
        Q_OBJECT

    public:
        TwitterRequest(QObject *parent = 0);

        /*
         * Makes a network call to retrieve the twitter feed for the specified screen name
         * @param screenName - the screen name of the feed to extract
         * @see onTimelineReply
         */
        void requestTimeline(const QString &screenName);

    Q_SIGNALS:
        /*
         * This signal is emitted when the twitter request is received
         * @param info - on success, this is the json reply from the request
         *               on failure, it is an error string
         * @param success - true if twitter request succeed, false if not
         */
        void complete(const QString &info, bool success);

    private Q_SLOTS:
        /*
         * Callback handler for QNetworkReply finished() signal
         */
        void onTimelineReply();
    };

In requestTimeline() we create a new QNetworkAccessManager object, which will do the low-level HTTP network communication. It expects an URL as input parameter, which we assemble here from the REST API and the screen name. Calling QNetworkAccessManager's get() method returns a QNetworkReply object, which acts as a handle to follow the status and progress of the network operation. We connect against its finished() signal to know when all data have been received.

    void TwitterRequest::requestTimeline(const QString &screenName)
    {
        QNetworkAccessManager* networkAccessManager = new QNetworkAccessManager(this);

        const QString queryUri = QString::fromLatin1("http://api.twitter.com/1/statuses/user_timeline.json?include_entities=true&include_rts=true&screen_name=%1").arg(screenName);

        QNetworkRequest request(queryUri);

        QNetworkReply* reply = networkAccessManager->get(request);

        connect(reply, SIGNAL(finished()), this, SLOT(onTimelineReply()));
    }

Inside the connected slot we check whether an error occurred and read the data from the QNetworkReply if the download was successful. At the end we emit the complete() signal with the JSON data or an error message as parameter.

    void TwitterRequest::onTimelineReply()
    {
        QNetworkReply* reply = qobject_cast<QNetworkReply*>(sender());

        QString response;
        bool success = false;
        if (reply) {
            if (reply->error() == QNetworkReply::NoError) {
                const int available = reply->bytesAvailable();
                if (available > 0) {
                    const QByteArray buffer = reply->readAll();
                    response = QString::fromUtf8(buffer);
                    success = true;
                }
            } else {
                response =  tr("Error: %1 status: %2").arg(reply->errorString(), reply->attribute(QNetworkRequest::HttpStatusCodeAttribute).toString());
            }

            reply->deleteLater();
        }

        if (response.trimmed().isEmpty()) {
            response = tr("Twitter request failed. Check internet connection");
        }

        emit complete(response, success);
    }
